PicoLume Wiring

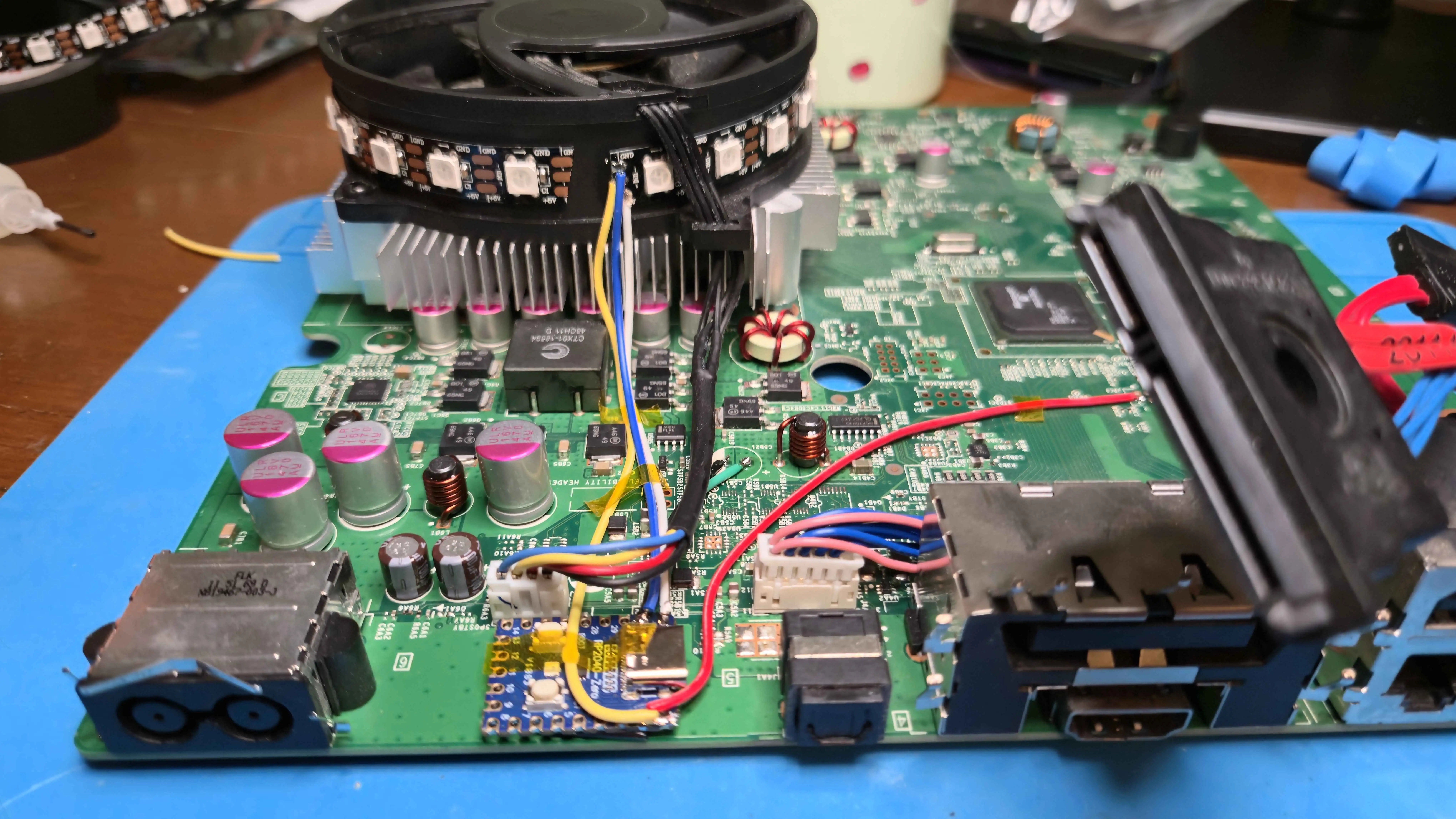

PicoLume installed on an Xbox 360 Slim Trinity motherboard. PicoLume uses a small RP2040 board to drive addressable RGB LEDs, here lighting up the console's fan with a range of colours and animated effects.

It's wired cleanly into the board's power, so the lighting comes on with the console. No extra cables or USB power needed.
